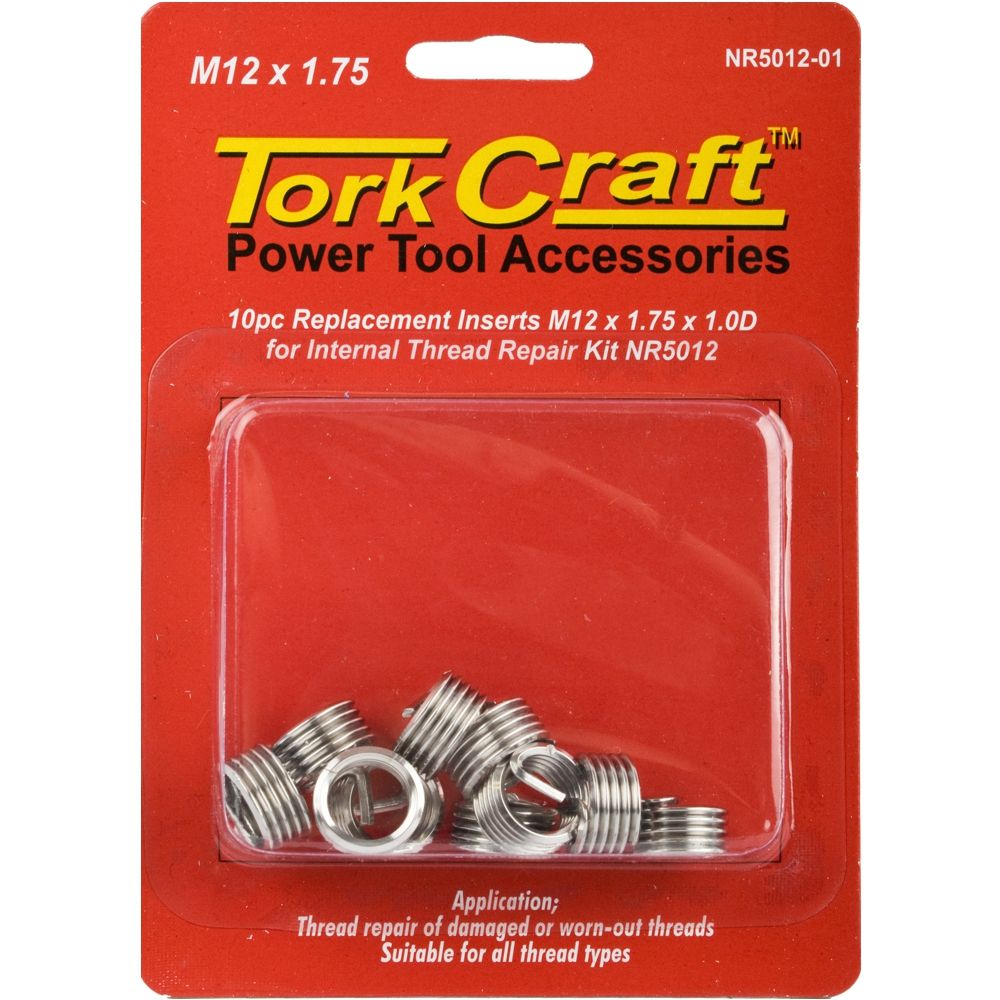

THREAD REPAIR KIT M12 X 1.75 X 1.0D REPL. INSERTS FOR NR5012
SKU NR5012-01
R77.10
In stock
1
Product Details
Thread Reair insert
M12 x 1,75mm x 1.0D
M12 x 1,75mm x 1.0D
Works with Kit NR5012 Thread length: 12 mm
Restore stripped threads easily and permanently with Tork Craft thread repair kits. Tork Craft application-specific thread repair kits make complex repairs simple and are a recommended solution by automakers.
Tork Craft inserts are for permanently repairing tapped holes which have been stripped or damaged due to wear, corrosion, and over-torqing.
Available in M4, M5, M6, M8, M10 and M12 and in three thread lengths per thread size.
Let's make sense of the numbers:
Example:
M4 x 0.7 x 1.0D
M4: The Metric value of the required thread i.e. Metric 4mm
0.7: This is the pitch of the thread
1.0D: this is the installed length of the insert after installation.
Determining the installed length:
M4 x 1.0D = 4mm deep
M4 x 1.5D = 6mm deep
M4 x 2.0D = 8mm deep
Thus, the depth (length) of the installed insert will be the metric diameter of the thread (in this case M4) multiplied by the “D” value.
