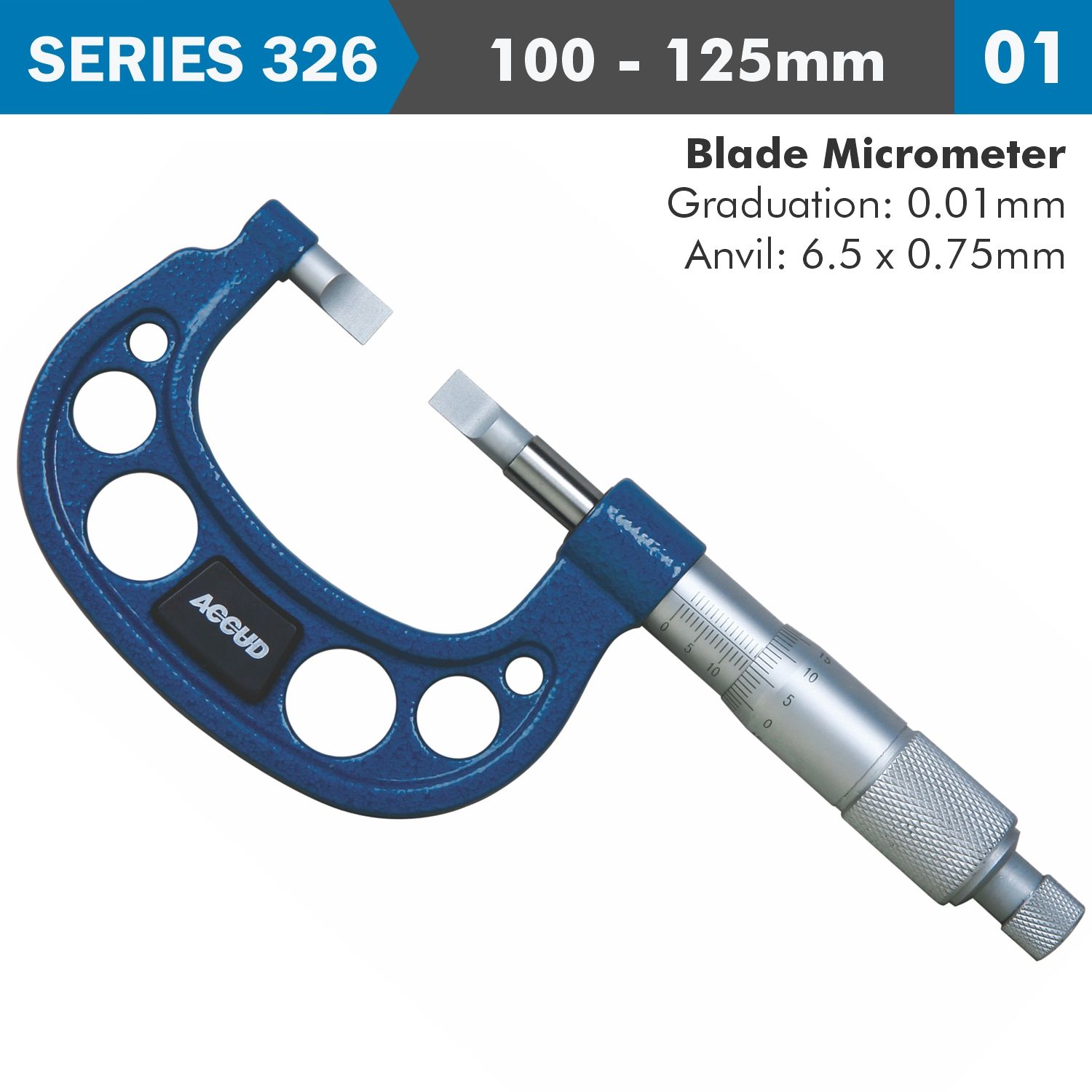

BLADE MICROMETER 100-125MM (0.01MM)

An outside blade micrometer is a specialized type of micrometer designed for measuring the external dimensions of small grooves, narrow slots, keyways, and other hard-to-reach features that standard micrometers cannot measure effectively. Unlike standard micrometers with flat anvils, the outside blade micrometer has thin, blade-like measuring faces that allow it to fit into tight spaces.

Features

• Measures small groove diameters
• Non-rotating spindle
• Ratchet stop
• Setting standards are included

Specifications

• Range: 100-125mm
• Graduation: 0.01mm
• Anvil: 6.5 x 0.75mm
